Currently, qualification tests have been completed to confirm the compliance of the valves with the requirements of K3 RCC-E.
The test results are positive.
The area of application of the valves is controlling the working medium (air) flow in various pneumatic systems and equipment operated at nuclear power plants.
Qualification of valves in accordance with K3, K2, K1 according to RCC-E (French rules for the design and construction of electrical components of nuclear islands).
RCC-E primarily relates to equipment or software, the failure of which may affect the safety of people or nuclear safety of the power plant.
Ki - qualification procedure category
Equipment of K1 category includes:
Equipment with a safety class located inside the containment, which must perform its functions when the unit is under environmental conditions corresponding to normal, accident and/or post-accident operating conditions and seismic loading.
Equipment of category K2 includes
Equipment with a safety class located inside the containment, which must perform its functions in an environment that corresponds to normal operating conditions and seismic loading.
Equipment of category K3 includes
Equipment with safety class located outside the containment, which must perform its functions in the environment that corresponds to normal operating conditions and seismic loading.

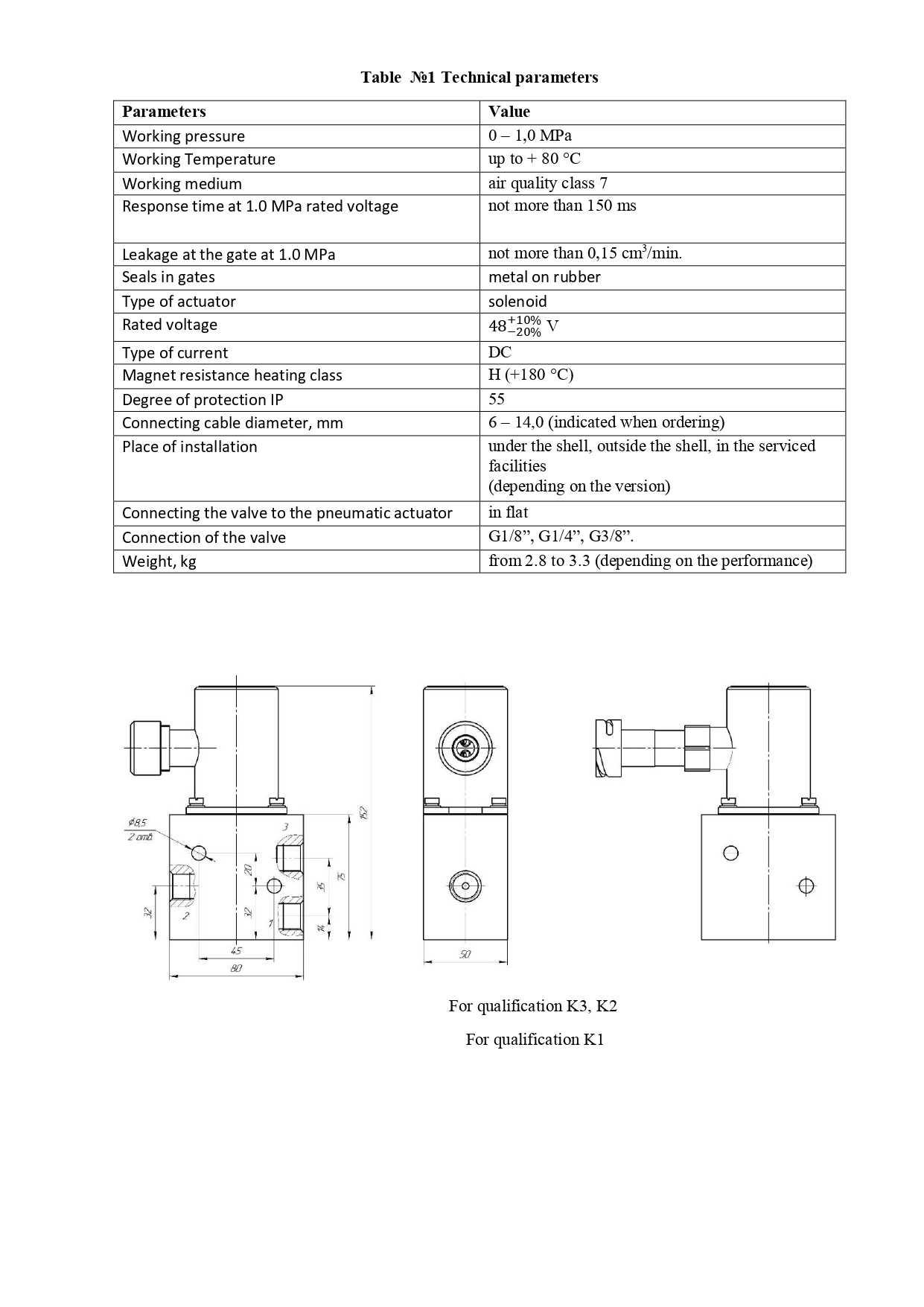

Main technical parameters according to table №1
Overall and connecting dimensions according to figure №1

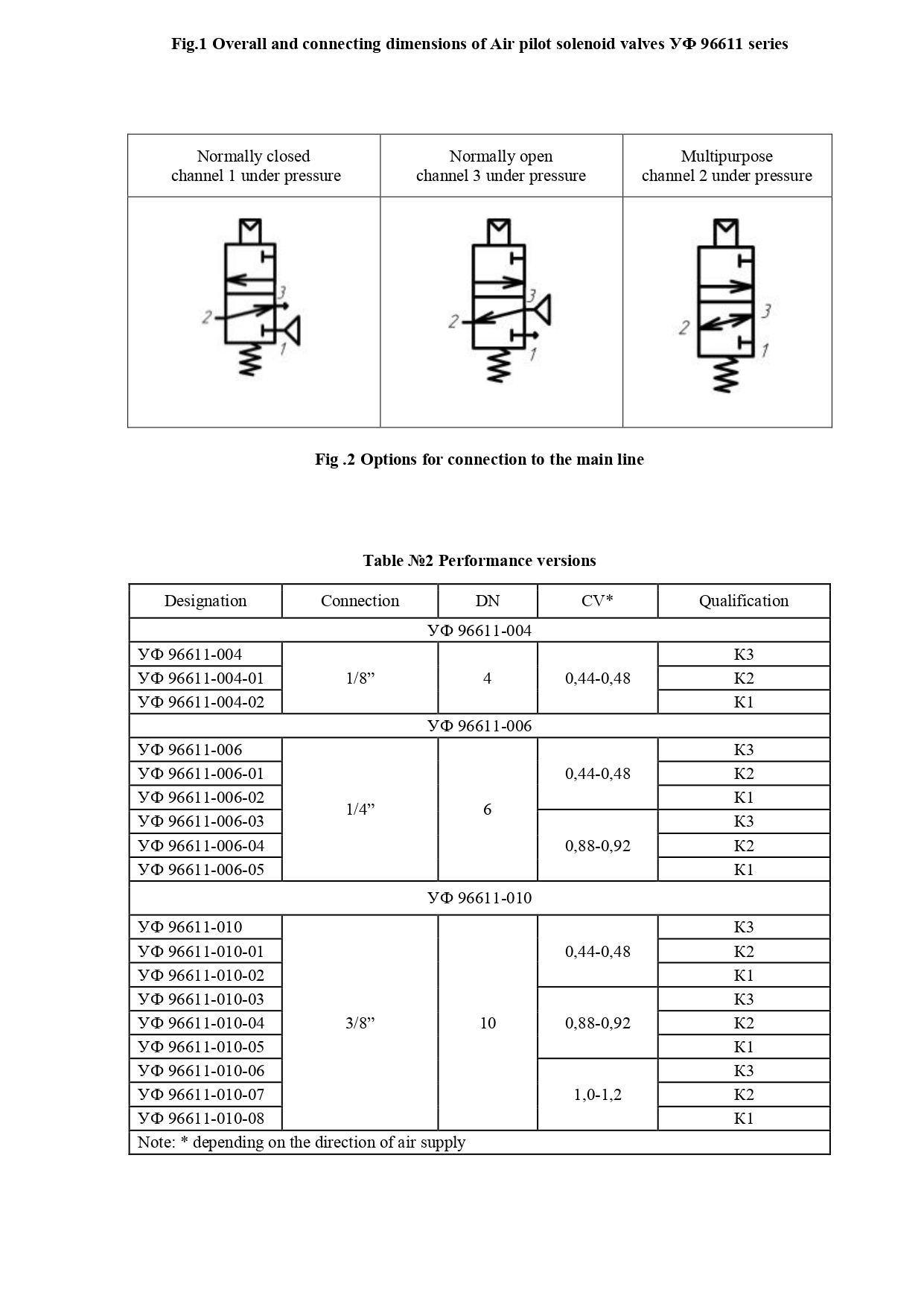

Connection diagrams according to figure №2
Versions according to table №2
